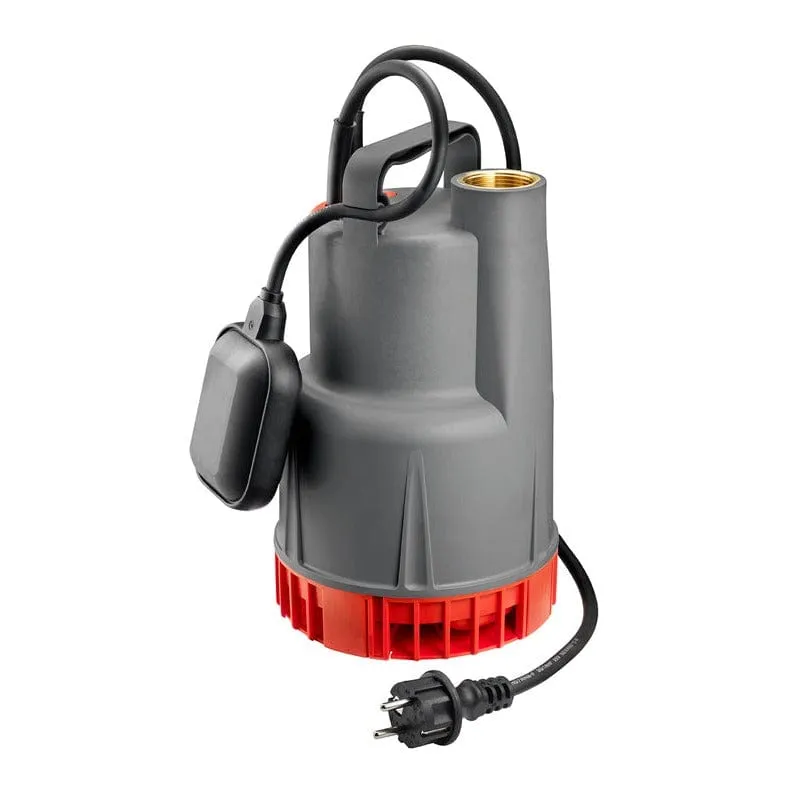

Drainage pump for emptying pits and cisterns, for gardening; completely constructed in anticorrosive material.
| CONSTRUCTION FEATURES | |
|---|---|
| Pump body | polypropylene |
| Impeller | noryl® |
| Mechanical seal | double lip seal |
| Motor shaft | stainless steel AISI 416 with ceramic bush |
| Passage of solids | Ø max 15 mm |
| Liquid temperature | 0-40 °C |
| Cable | H07 RNF, 10 mt |
| G | float switch |
| Max Depth of immersion | 5 mt |
| Motor | |
|---|---|
| 2 poles induction motor | 1~ 230V-50Hz with thermal protection 3~230/400V-50Hz |
| Insulation class | F |
| Protection degree | IPX8 |
